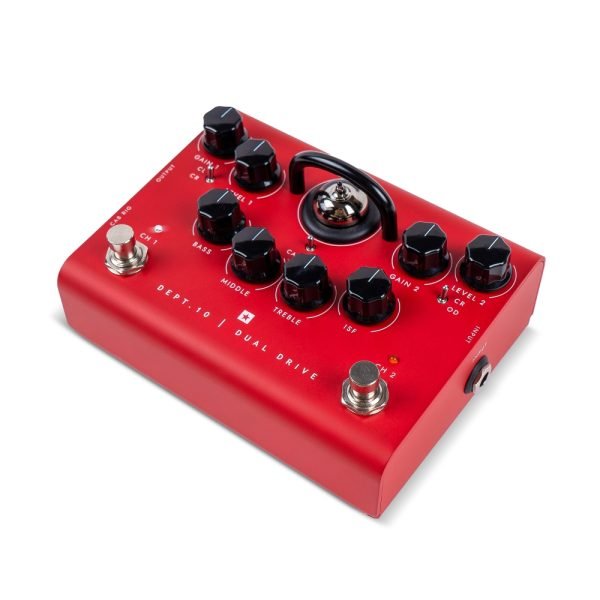

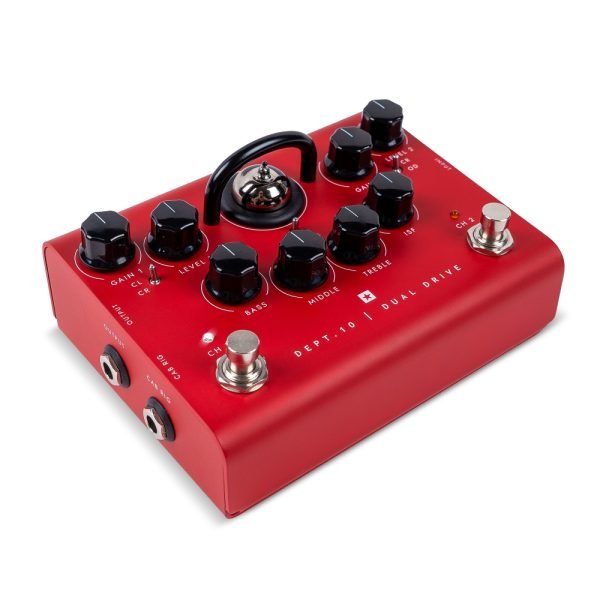

Blackstar Dept 10 Dual Drive – 2‑Channel Valve Overdrive Pedal with CabRig™ DSP & USB/XLR Interface

High-voltage dual-channel overdrive pedal featuring real ECC83 tube, 4 voices, ISF EQ, CabRig™ speaker simulation, USB/XLR direct output, FX loop, and buffered bypass—ideal as a pedalboard amp or recording preamp.

Blackstar logo - innovative guitar amplifiers and effects pedalsBlackstar Dept 10 Dual Drive – 2‑Channel Valve Overdrive Pedal with CabRig™ DSP & USB/XLR Interface

Need help choosing?

Chat with us on WhatsApp for quick advice & same-day delivery via Grab or Lalamove in KL/Klang Valley.

WhatsApp Us!

Original price was: RM1,400.00.Current price is: RM840.00.

1 in stock

Purchase & earn 840 points!
Add to CompareAdded

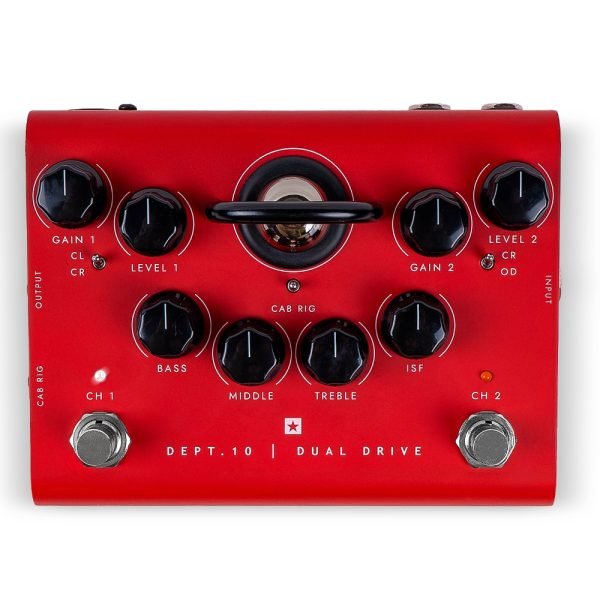

The Blackstar Dept 10 Dual Drive is a game-changer valve pedal, featuring an internally boosted ECC83 triode tube (200+ V) that delivers dynamic, organic tone and authentic amp breakup. With two channels—each offering two distinct voices (Clean/Crunch on Ch1, Crunch/Overdrive on Ch2)—plus 3-band EQ and the patented ISF control, you get four tonal personalities in one pedal .

More than just an overdrive, it doubles as a fly-rig amp in a box thanks to built-in CabRig™ DSP speaker emulation, editable via USB and Architect software, with outputs via USB, XLR DI, or stereo headphone jack . The pedal also includes an effects loop, facilitating seamless integration with modulation or delay units .

Whether you use it to drive your amp’s front end or as a complete pedalboard solution, users praise its flexibility and tone range.



Key Features

  • Tube Circuit: ECC83 valve operating at 200–250 V for authentic warmth and harmonic richness

  • Dual-Channel Design: Four voices—Clean/Crunch and Crunch/OD

  • Tone Controls: 3-band EQ plus Infinite Shape Feature (ISF)

  • CabRig™ DSP: Speaker, mic & room simulation via USB/XLR/stereo outputs

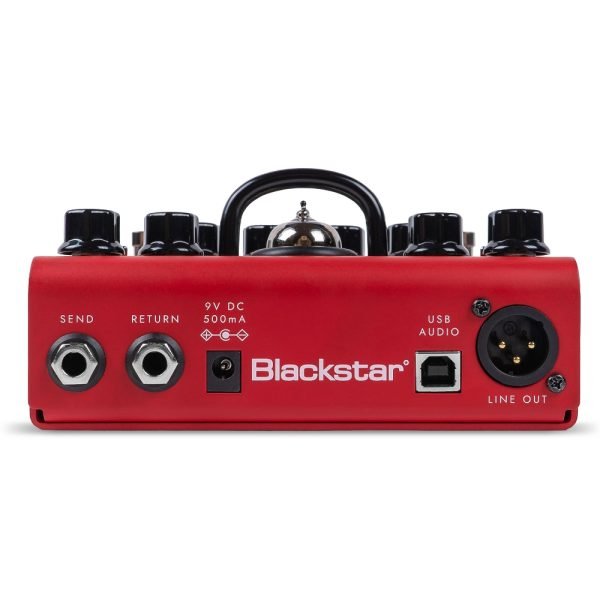

  • I/O: USB-C, XLR DI out, stereo headphone jack, ¼″ send/return loop

  • Buffered Bypass and effects loop for pedalboard compatibility

  • Power: 9 V DC/500 mA (adapter included)

Technical Specifications

  • Dimensions: 125 × 173 × 122 mm

  • Weight: ~2.1 kg

  • Bypass: Buffered

  • Software: Editable CabRig™ presets via Architect software

  • Additional Outputs: CabRig™ ¼″ jack for powered speakers or headphones



At CK Music, we recommend the Dept 10 Dual Drive for its unmatched versatility—whether as a tone-shaping pedal, direct-to-PA rig, or amp-in-a-box tool. With tube-driven warmth, four unique voices, and studio-ready outputs, it’s a standout for Malaysian guitarists building compact but powerful rigs.

Weight2.10 kg
Dimensions12.50 × 17.30 × 12.20 cm
Pedal Type:

Overdrive

Analog/Digital:

Analog

Inputs:

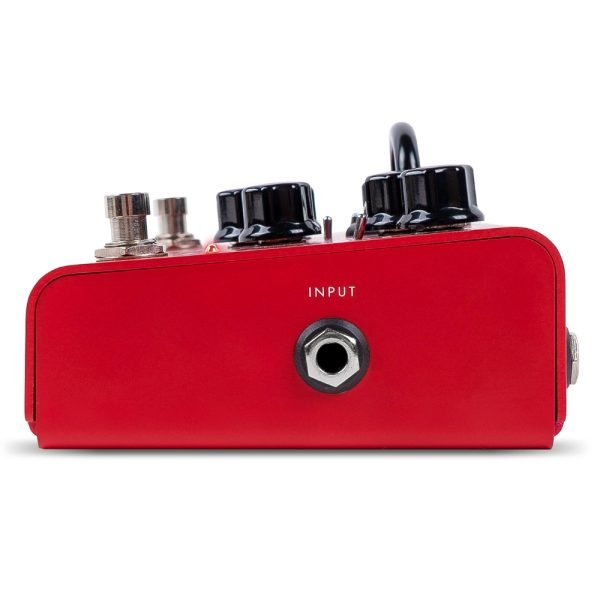

1 x 1/4" (instrument), 1 x 1/4" (return)

Outputs:

1 x 1/4" (out), 1 x 1/4" (cab rig), 1 x 1/4" (send), 1 x XLR (line out)

USB:

1 x Type B

Bypass Switching:

Buffered

EQ:

3-band EQ, ISF tone control

Features:

ECC83 Preamp Tube

Software:

Architect Software

Power Source:

9V DC power supply (included)

Power Usage:

Up to 500mA

Blackstar is a UK-based brand renowned for its innovative guitar amplifiers and effects pedals, trusted by guitarists worldwide for their versatility, tone, and reliability. From compact practice amps to powerful stage rigs, Blackstar provides solutions for players at every level. With groundbreaking technologies like ISF (Infinite Shape Feature), the brand offers guitarists the freedom to shape their sound while maintaining exceptional clarity and dynamics. Built by musicians for musicians, Blackstar continues to redefine guitar amplification for the modern player.
