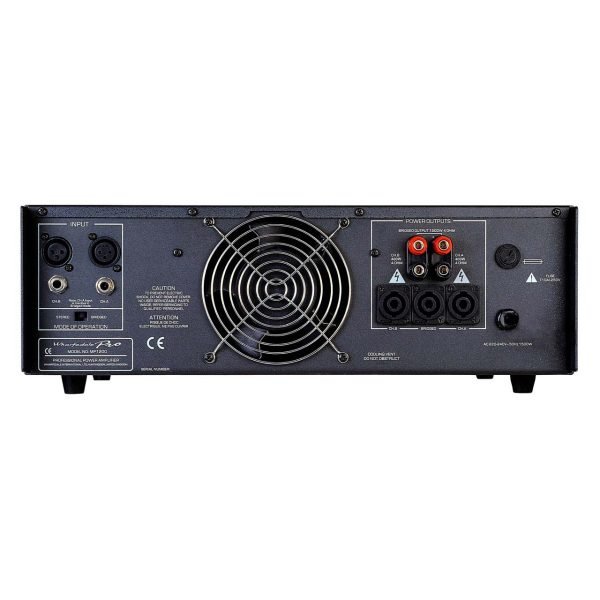

Wharfedale Pro MP1200 Power Amplifier

RM816.00

DISPLAY UNIT

MP Series Power Amplifier

1 in stock

Purchase & earn 816 points!

Add to Wishlist Browse Wishlist
SKU: MP1200 Categories: , Tag:



Power Amplifiers MP Series

Sonic accuracy and durability are the most important features of a professional power amplifier, which have been considered in all elements of the MP1200. Each model in the MP Series uses an all all-steel chassis along with state of the art electronic components, all housed within a unique amplifier design that provides high power and clean signal reproduction in a variety of applications and loudspeaker configurations.

New FRT Circuitry

With a high slew rate across the MP Series, each amp reacts quickly to drive your loudspeakers as clearly and accurately as possible. Newly developed FRT or ‘fast reaction technology’ in the ‘s’ models create an even faster low frequency response assuring the MP1200 does not miss a beat during performance.

Stereo & Bridge efficiency

The MP1200 will work efficiently in stereo and bridge modes. The amplifiers also run down to 2 Ohms safely in stereo mode which means that the amplifiers can be used for a multitude of setups. Use in bridge mode with an individual high-powered subwoofer or use a single MP1200 to power multiple speakers equally.

Features

• High-end power amps with optional bridged mono operation mode
• Built in toroidal transformer
• Rear panel ground lift switch
• Class AB Topology
• All steel construction
• Continuously variable speed fan
• Sophisticated protection circuitry including; Soft start protection relay; Thermal overload protection; Short circuit protection; Open circuit protection
• Front controls including: Power Switch, Channel A and Channel B gain controls
• Front panel LED indicators for Power On, Peak, Protect
• Stereo/Bridge Mode switch on rear of unit




Specifications
MP 1200

Power: Per Channel (1% THD)

Stereo Mode 8 Ohms 260 Watts

Stereo Mode 4 Ohms 400 Watts

Stereo Mode 2 Ohms 640 Watts

Bridged Mono Mode 8 Ohms 800 Watts

Bridged Mono Mode 4 Ohms 1280 Watts

Input Sensitivity & Impedance

At 4 Ohms 0.775v

Unbalanced 1/4" Jack 10K Ohms

Balanced XLR 20K Ohms

Voltage Gain 35dB

Slew Rate: 8 ohms FULL SWING

Stereo >30v/u sec

Channel Seperation 76dB

Signal to Noise (20Hz – 20kHz) 100dB

Distortion (SMPTE-1M) less than 0.05%

Frequency Response

+/-1dB @ 4 Ohms 20Hz to 20kHz

+/-3dB @ 4 Ohms 5Hz to 50kHz

Damping Factor (8 ohms, 1kHz) Greater than 300

Topology Class AB

Connectors

Input XLR & 1/4" TRS

Output 5 Way Binding Posts & Speakon or Speakon

Controls

Front AC Switch, CH1 & CH2 Gain Knobs

Rear Stereo/Bridge Mode Switch

Indicators Power switch on/off mute, Short circuit, Open circuit, Thermal

Cooling Variable Speed Fan

Gross Weight (kg / lbs) 23kg / 50.6lbs

Net Weight (kg / lbs) 21.5kg / 47.3lbs

Dimensions (HxWxD) mm 133 x 483 x 355

Dimensions (HxWxD) inches 5.2 x 19 x 13.9


* Appearance and specifications of this product are subject to change without notice.
Weight 8.00 kg
Dimensions 56.00 × 47.50 × 25.00 cm
