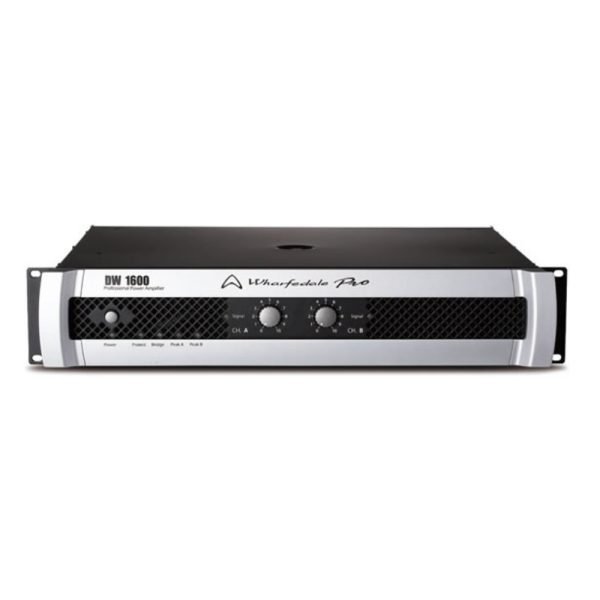

The DW-1600 is a 2U dual channel power amplifier designed for both fixed installation and touring applications.
The controls on the front of the DW-1600 are simple yet effective with individual channel input trim controls and a power switch. Power, Signal, Clip and Fault LED’s on each channel can help identify both normal and abnormal activity. Generous sized filtered air intake vents complete the clear and functional front panel.
The rear panel accommodates power via an IEC receptacle and has high quality audio connections including XLR inputs and through outputs for parallel wiring additional power amps, the main outputs use Speakon™ connectors for reliable and dependable connectivity.
- Features:
- Switchable stereo and bridged modes
- Individual channel input trim controls
- XLR inputs and outputs
- Speakon™ main outputs
- Power, Protect Bridge, Signal, and Peak indicators
- Variable speed fan cooling system
- Front panel air filters
- IEC AC input receptacle
- Road-ready 2u rackmount chassis
- Specifications:
- Signal Noise Ratio: 106dB
- Slew Rate: 42V/us
- Frequency Response: 20Hz-20kHz (0~2dB)
- Damping Factor: >450
- Cooling: Front-to-rear
- Power Requirements: AC~230V 50Hz-60Hz
- Crosstalk: <-80dB
- Protection: Audio limiters, thermal Overload, short circuit
- THD at Rated Output Power: <0.1%
- Weight: 19.5 Kg
- Load Impedance: 8ohm, 40ohm, 2ohm
- Current Consumption: 280W, 400W, 600W
- Rated Output Power: 2x450W, 2x620W, 2x800W
- Maximum Bridged Output Power (THD<1%, 1KHZ): 1250, 1600W
- Maximum RMS Voltage Swing (THD<1%, 1KHZ): 60V
- DIM30(3.15KHZ,15KHZ): <0.1%
- IMD-SMPTE(60HZ,7KHZ): <0.1%
- Input sensitivity (1KHZ): 1.0V
- Dimensions(WxDxH) : 483x380x88mm
- Input Impedance (20HZ-20KHZ,Balanced): 20kO / Balanced, 10kO / Unbalanced
