AirLine Synth Wireless Systems

Samson began as a wireless technology company over 25 years ago. We packed our high-quality wireless gear with value and professional sound capability. Now, we introduce the most versatile, technologically advanced wireless system in our history: AirLine Synth.

With its sleek, frequency-agile micro transmitters, one button channel selection and infrared scanning, the technology behind our new AirLine Synth provides easy setup and clear reception at every gig in every location.

Ideal for media production, house of worship and of course, professional music production of all varieties, AirLine Synth is a true diversity system that is frequency selectable, with the capability of operating on over 300 frequencies* with up to 11 simultaneous systems**.

AG300 – AirLine Synth Guitar Transmitter

The AG300 guitar transmitter is a unique, dual mount jack that works on either Gibson® or Fender® style outputs. Containing a precision guitar preamp, the AG300 ensures that any guitarist’s tone stays as “pure as the wire” with no unwanted color or distortion.

An easy-to-read digital channel readout, low battery indicator and a mute switch for “hot swapping” are on-board. Additionally, a “set and forget” attenuation switch for active pickups and attenuation level are under the battery cover.

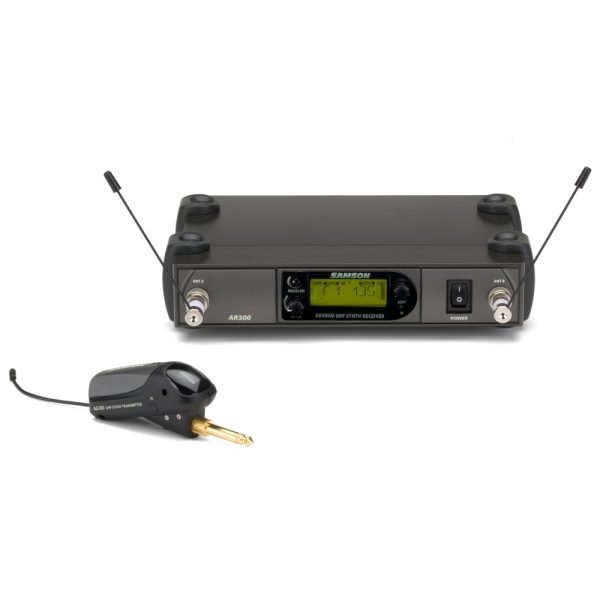

AR300 – AirLine Synth Receiver

The Guitar System includes the AR300 AirLine Synth Receiver. Roadworthy durability and crystal clear reception in any location make this receiver an intelligent choice for discerning professionals. Featuring automatic RF scanning and infrared programming, balanced and unbalanced outputs as well as front or rear mountable antennae, the AR300 is loaded with convenience and cutting-edge technology. We also designed it with a backlit LED front panel display that shows AF/RF levels, frequency, audio output level and group for easy setup on the fly. Up to four AR300M modules can also be rackmounted in a single rackspace using the AR4300 receiver.

* Channels: 320 channels 25kHz Step (N and U Bands), 71 channels 25kHz Step (E Band)

** Simultaneous Systems: Up to 11 (N and U Bands), Up to 5 (E Band)

*** Operating Frequency: 639.025–647 MHz, 798.025–806 MHz (not for use in the USA), 863–865 MHz (not for use in the USA)

To add depth and color to your tone, AC-3 also features the best effects we’ve ever designed for acoustics. Choose from 9 different effects such as delay, chorus, and reverb, each of which has with adjustable parameters for fine-tuning your sound.

.

Features

AG300

• Plug-in micro guitar transmitter, no beltpack
• Frequency-agile synthesized tuning with over 300 channels*
• IR transmitter channel set
• LCD display
• Mute switch
• 15 dB pad for hot pick-ups
• Gain control
• Low battery indicator
• 1/4-inch gold jack convertible for Fender® or Gibson® style guitars

AR300

• Frequency-agile synthesized True Diversity receiver with over 300 channels*
• Automatic Channel Scan to select the clearest frequency
• Infrared transmitter channel set
• 50mm x 20mm backlit LCD display
• Metal half-rack chassis
• Dual front-mounted removable TNC antennas
• Squelch control
• XLR and 1/4-inch balanced outputs
• Mic or line level switch
• 11 simultaneous systems**
• Rackmount kit included
