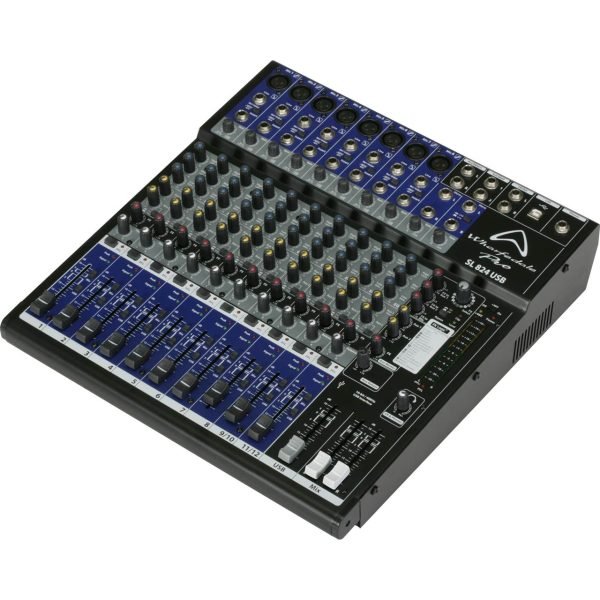

The SL 824 mixer is a studio/live mixing console with built-in full duplex USB interfacing. Designed to cater for a wide range of mid format mixing duties, the SL 824 includes many features suited to both live sound and home studio applications. A high quality class-compliant 2-input 2-output 16-bit/48kHz USB interface features on all models, with a flexible record bus and dedicated return channel that is great for live and home recording.
Studio grade microphone preamps are used throughout and have balanced XLR inputs, with all channels also offering balanced/unbalanced TRS line level connectivity. In addition all of the mono channels have a TRS insert point.
An ultra musical 3-band EQ is available on all channels, with an additional high pass filter on the mono channels. A built in FX processor with 16 presets gives you unlimited creative potential and is supplemented by a dedicated FX send and auxiliaries.
KEY FEATURES
• Full Duplex 2 In/2 Out 16-Bit 48kHz USB Interface Dedicated USB Recording Bus
•Switchable Line/USB Return Channel
• 8 Studio Grade Phantom Powered Microphone Pre-Amps
• Ultra Musical 3-Band EQ with High Pass Filters
• Built-In Digital FX with Dedicated Send
• 2 Auxiliary Sends
• Dedicated Stereo Return with Level Control
• Pan and Balance Controls
• PFL for All Channels
• Control Room and Headphone Outputs
• Master Outputs with XLR and TRS Connectors
DETAILED SPECIFICATIONS
FREQUENCY RESPONSE:
THD+N:
20Hz~20kHz ±2dB
<0.025% @ + 14dBu ±0.5dBu
MAXIMUM INPUT LEVEL:
AC POWER OPTIONS:
Mic +4dBu ±1dBup; Channel Line +21dBu ±1dBu; Stereo Line +21dBu ±1dBu; AUX Return In +21dBu ±1dBu
AC100V-240V~ 50/60Hz
DIMENSIONS (HXWXD):
WEIGHT
80mm x 400mm x 369mm / 3.15″ x 15.7″ x 14.5″
5.2kg / 11.46lbs
MONO INPUT CHANNEL GAIN:
LEVEL METERS:
50dB Variable MIC (0~-50dB) Line (-20dB~ +30dB)
12 Segment LED x2 (Output of +4dBu = 0dB) Main L/R
