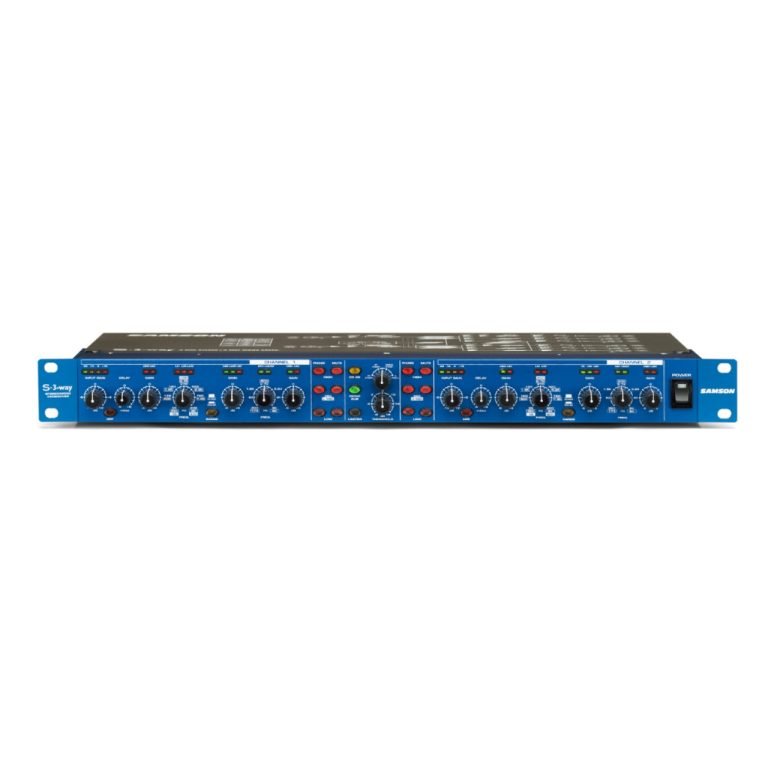

Samson S-3 WAY Stereo/Mono Crossover

Original price was: RM1,235.00.Current price is: RM864.50.

Stereo/Mono Crossover

2 in stock

Purchase & earn 865 points!
Add to Wishlist Browse Wishlist

We are happy to help you!

Reach out to our experts and CHAT NOW or WhatsApp for assistance with our products.

The S 3-way is a versatile 2-way, 3-way and 4-way crossover with a difference. First, it’s a perfect 2-way or 3-way stereo crossover. But its mode is also switchable for use as a 4-way mono crossover. The input gain features +/-12dB range with LED metering and Peak indicators. S 3-way features Low, Mid and High Frequency outputs with +/-6dB of gain control. Each output incorporates a Mute switch for monitoring the individual frequency bands and a phase switch to invert the phase of the output. The first crossover point is sweepable in three ranges: from 35Hz to 800Hz, from 350Hz to 8kHz with the 10X-Multiplier switch engaged, or from 16Hz to 400Hz in 4 way low-mode. The second crossover point is sweepable from 175Hz to 4kHz or from 350Hz to 8kHz depending on the setting of the mode switch. The S 3-way also includes a Delay section with up to 2ms of delay to time-align low frequency outputs for improved phase response of any PA system. S 3-way’s global section features a variable threshold Limiter, a CD function (for constant directivity horns) and High Pass Filter.

  • Full-featured, Stereo 3-way, Mono 4-way Electronic Crossover
  • Phase Switches Invert the Phase of Individual Outputs
  • Adjustable Low Frequency Delay for Time Aligning Speaker Stacks
  • Mode Indicator LEDs Provide Quick Visual Display of Operating Mode
  • 4 Segment LED Input Meter Allows Easy Gain Adjustment
  • Precision Linkwitz-Riley, 24 dB/Octave filters
  • Output Mute Switches for All Individual Outputs
  • Constant Directivity EQ Smoothes the Response of CD Horns Above
  • 3.5 kHz
  • Peak Limiter with Independent Threshold Control and Peak LED
  • High Quality 41 Position Detent Pots and Backlit Switches



Weight 3 kg
Dimensions 20 × 20 × 20 cm
