Blackstar Live Logic USB Midi Controller – Midi Foot Controller

RM656.00

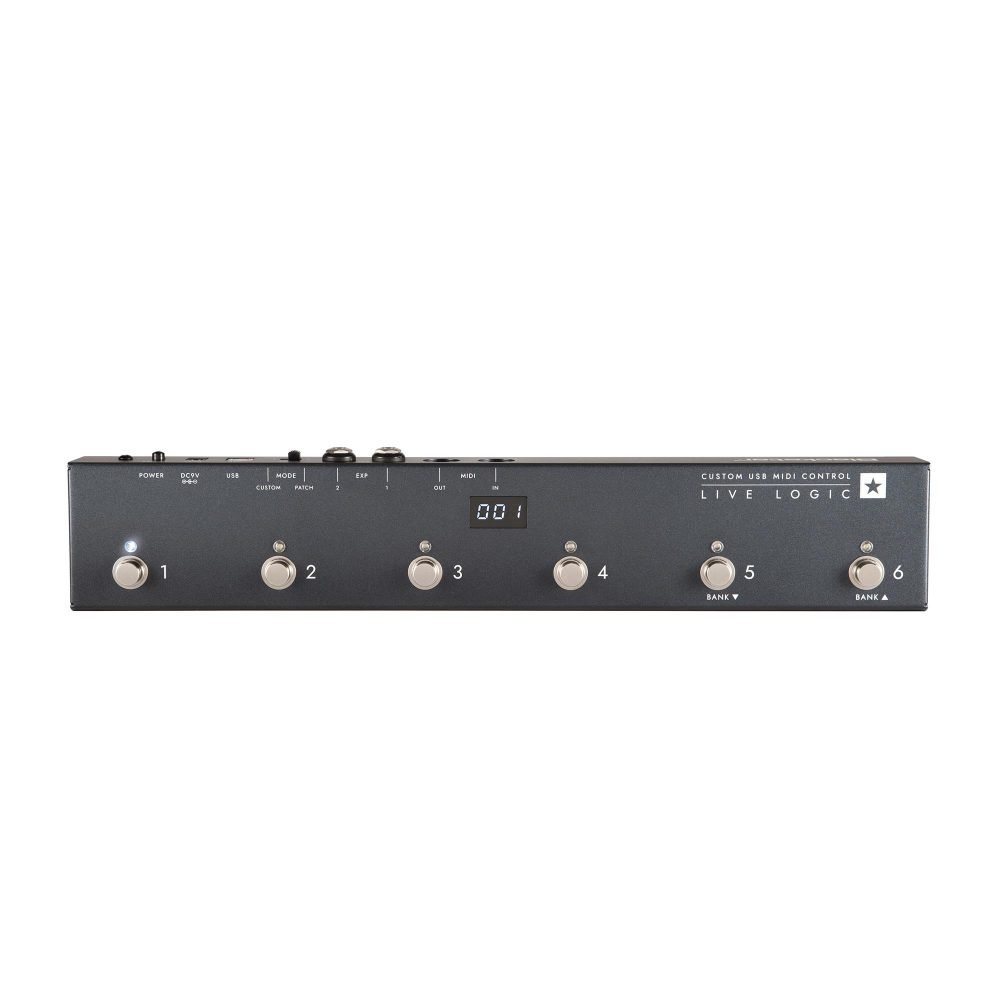

Blackstar Live Logic Midi Foot Controller

2 in stock

Purchase & earn 656 points!
Add to Wishlist Browse Wishlist
SKU: LIVE-LOGIC-MIDI Categories: , Tag:
LIVE LOGIC USB MIDI CONTROLLER

THE WORLD AT YOUR FEET

Incredibly flexible performance control of MIDI hardware and software in a compact, rugged footcontroller.

The Live Logic compact and versatile 6-button MIDI footcontroller gives you quick and easy performance control of any MIDI hardware or software platforms and plugins. MIDI over USB, assignable functions and two expression pedal inputs make it the perfect MIDI control solution and it can also be used as your USB MIDI interface. Power it anywhere via USB, 9V battery or power supply and unlock your performance.
KEY FEATURES
  • MIDI over USB for use with DAWs, plugins and live sequencer/sampling software like Ableton LiveTM.
  • Can be used as your USB MIDI interface.
  • 2 x expression pedal inputs for continuous control of MIDI parameters.
  • Controls Program Change, Control Change, Note and Clock messages.
COMPLETE CUSTOMISATION WITH OUR FREE APP

Customising the Live Logic MIDI Footcontroller is simple thanks to our free PC or Mac app, which allows you to customise the function of each footswitch and expression pedal and save and load configuration pre-sets.

Using an intuitive graphical view of the footcontroller, you can choose message types, set minimum and maximum values, toggle whether the switches send momentary messages or toggle on/off, plus more. Every aspect is designed to be flexible and simple so your Live Logic MIDI Footcontroller speeds up your creative workflow or performance.

APP DOWNLOADS

Live Logic App (PC)     Live Logic App (MAC)

FIRMWARE DOWNLOADS / UPDATER

Live Logic Firmware Updater (PC)     Live Logic Firmware Updater (MAC)     Live Logic Firmware 0.2.1.1

Custom mappings can be saved as a Profile which can be loaded and swapped out depending on your current rig. For example, if you have a Blackstar Silverline Deluxe amplifier you could use Custom mode to create a profile for your own personal footswitch set. Switches 1-3 could change your patches, for instance, a clean crunch and lead, and switches 4-6 could stomp on and off your in-built modulation and delay effects, or even switch other external MIDI pedals that you may have on your pedalboard. Connect an expression pedal to give yourself a volume pedal for swells, or creative effects like controlling the level of a delay.

DESIGNED FOR PRO USE AT HOME OR THE STAGE

The Live Logic MIDI Footcontroller is a super-compact, fully customisable control interface that’s gig-ready. Its, tough metal construction and bright LEDs and display make it perfect for home or stage use. It can be powered by 9V battery, an external 9V power supply, or even directly via USB.



MAKE LIVE LOGIC WORK FOR YOU

There are two modes: Patch and Custom. Patch mode sets up the footswitches to send MIDI Program Change messages. Switches 1-4 send Program Change messages, and 5 and 6 will Bank up and Bank down, allowing access to 127 different patches. You can even set whether they should be arranged as 0-127 or 1-128 depending on the type of equipment you’re connecting to.

When in Custom mode, all 6 switches can be individually configured to any type of MIDI message you need, whether that’s Program Change for switching patches, Control Change for changing individual parameters, Note for triggering samples or Clock for synchronising the tempo of multiple time-based gear. There are also two expression pedal inputs for continuous control of MIDI parameters.

Message types include:

PC Changing patch
CC Controlling any parameter
Note Used to play notes or trigger samples
Clock Used to synchronise all tap tempo BPMs to be the same
ENDLESS POSSIBILITIES WITH USB

The Live Logic Custom USB MIDI footcontroller’s MIDI over USB functionality easily gives you powerful performance control of DAWs, plugins and live sequencer/sampling software like Ableton LiveTM.

Live Logic can also be used as your USB MIDI interface to integrate any non-USB MIDI devices into a USB setup.



FREE ABLETON LIVE 10 LITE SOFTWARE

Download the Ableton Live 10 Lite Handbook

Our Live Logic MIDI Footcontroller is the only footcontroller to include a free copy of Ableton’s excellent Live Lite 10 Lite software. You can use all of Live 10 Lite’s essential workflows, instruments and effects to record songs, create hands-on with your controller, take music made in your apps further and much more.

Register here to download your own free copy.

Ableton Live 10 Lite Registration

USB MIDI CONTROLLER

Specification:

  • 6-button MIDI Footcontroller
  • 2 x expression pedal inputs
  • Controls PC, CC, Note and Clock messages
  • MIDI over USB for use with DAWs and plugins
  • PP3 battery, 9V DC and USB bus powered
  • Customisable MIDI messages via free software
  • Program Change Messages 0-127 / 1-128
  • Stage visible multi-function LED display
  • MIDI IN, MIDI OUT and USB
  • Dimensions 396 x 37 x 74mm
Weight 1.2 kg
Dimensions 39.6 × 3.7 × 7.4 cm
Type:

6-button MIDI Foot Controller

Presets:

127 x Patches

Pedal Inputs:

2 x 1/4" (expression)

MIDI I/O:

In/Out/USB

USB:

1 x Type B

Compatibility:

MIDI Hardware, MIDI Software Platforms and Plug-ins

Software:

Ableton Live Lite, Live Logic MIDI Control

Power Source:

9V DC power supply / USB bus powered / 1 x 9V Battery
